BAND SEALER MACHINE
Model : | Pic990 (50gm to 5Kgs) |
---|---|
Voltage : | AC-220/50 110/60 |
Power: | 50-60 Hz |
Working Speed: | 0-15m/min |
Sealing Width: | 6-12mm |
Temp. Range: | 0-400 (C) Step Less Adj. |
Max. Loading: | 9 Kgs |
Machine Weight: | 35 Kgs |
Machine Size: |

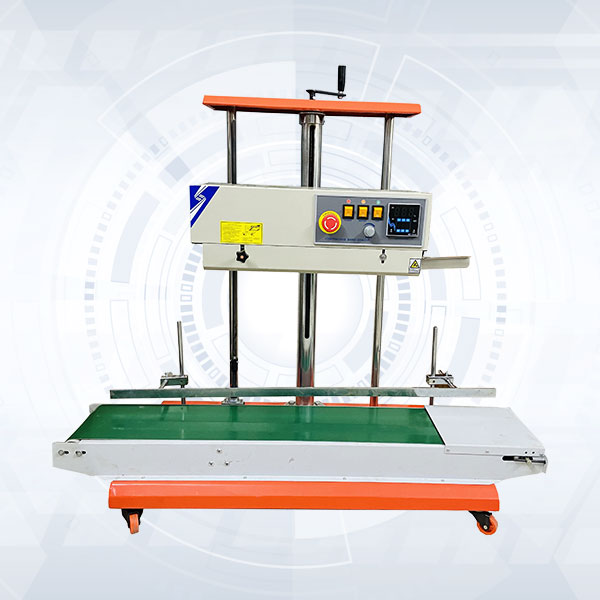

Model : | Pic990 (50gm to 10Kgs) |
---|---|
Voltage : | AC-220/50 110/60 |
Power: | 50-60 Hz |
Working Speed: | 0-15m/min |
Sealing Width: | 6-12mm |
Temp. Range: | 0-400 (C) Step Less Adj. |
Max. Loading: | 20 Kgs |
Machine Weight: | 43 Kgs |
Machine Size: |
Voltage(V/Hz) : | AC 220/50 110/60 |
---|---|
Motor Power(W): | 50 |

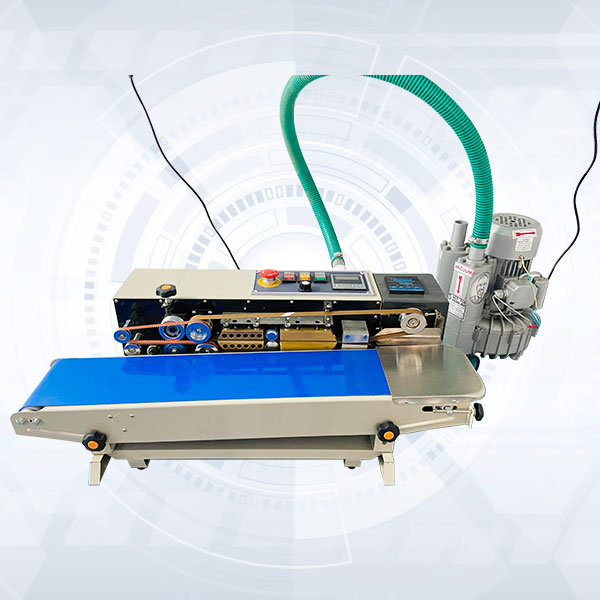

Suction Pump Power(W): | 1200 |
Sealing Power(W): | 300 x 2 |
Printing Heating Power(W): | 0-12 |
Sealing Width(mm): | 12 |
Printing Type: | Solid-Ink Roller |
Conveyor Table Size(LxW)(mm): | 1065x205 |
Max. Conveyor Loading(kg): | 3 |
External Dimensions(LxWxH)(mm): | 1065x550x900 |
Weight(kg): | 74 |
Application: Surgicals, Pharmaceuticals, Food Industries & etc.

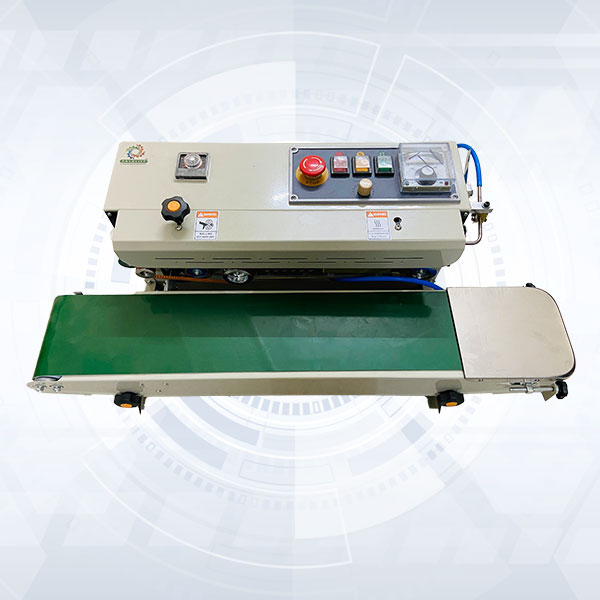

Features: Nitrogen Flushing to protect food from moisture or pillow type, leak proof & accurate sealing. Pillow pack is maintaining the freshness, aroma, crispiness for long time. save the product from breakages & damages during the transportation. The nitrogen flushing and sealing control through adjustable digital timer.
Power Supply: | Single Phase 220V/50Hz |
---|---|
Power Consumption: | 500 W |
Sealing Speed: | 0 to 12Mtr./Min |
Sealing Width: | 10mm |
Temperature: | 0-300 C |
Conveying Load: | 3 Kg. |
Dimensions: | 1040 x 380 x (450 to 630) Adjustable (mm) |
Weight: | 40 Kg |
Application: Namkeen, Tobacco, Spices, Detergent Powder, Instant Food, Bakery, Chemicals, Flour Mills, Pharmaceuticals, Dairy Product etc.

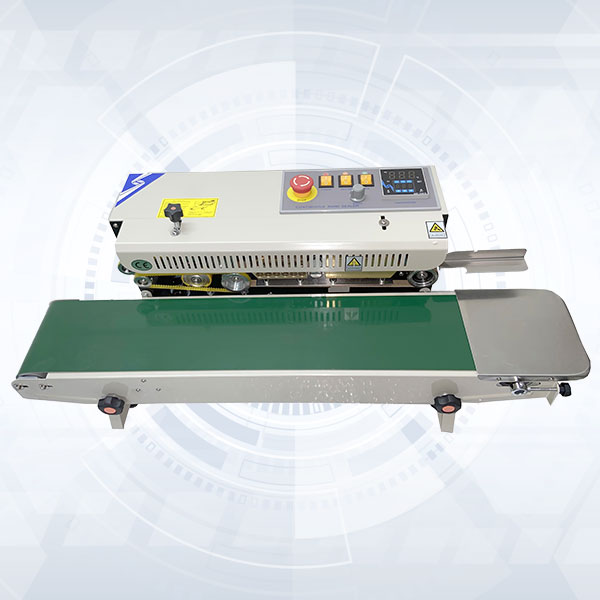

Model : | Pic990 (HORIZONTAL) |
---|---|
Voltage : | AC-220/50 110/60 |
Power: | 50-60 Hz |
Working Speed: | 0-15m/min |
Sealing Width: | 6-12mm |
Temp. Range: | 0-400 (C) Step Less Adj. |
Max. Loading: | 3 Kgs |
Machine Weight: | 24 Kgs |
Machine Size: | 840 x 380 x 320 |
